Xiegu X6100 HF/50MHz Portable SDR Transceiver

Xiegu X6100 Key Features

• • HF/50MHz all mode including data
  • 10 W transmit power with external power source, 5 W with internal battery
  • 4″ high-resolution color screen, 800*480 pixels resolution
  • Built-in rechargable large capacity lithium battery pack, 12V/3,5 Ah
  • Built-in efficient automatic antenna tuner
  • Standing wave scanner
  • Voice memory keyer
  • CW memory keyer
  • Native Bluetooth and WiFi supports wireless audio, keyboard & mouse
  • Onboard USB serial adapter with sound card
  • Second USB host port to support mouse, keyboard and storage device
  • High stability TCXO internal clock source

Xiegu X6100 General Specifications

• • Frequency coverage: 0,5-30+50-54MHz (Transmit in Ham Bands)
  • Operating modes: USB/LSB (J3E), CW (A1A), FM (F3E)，RTTY (F1B), AM (A3E)
  • Minimum Frequency Step: 1 Hz
  • External power supply voltage: DC9-15V
  • Frequency stability: ±1.5ppm within 10~30min after startup @25°C: 1ppm/hour
  • Antenna Impedance: 50 Ohm
  • Antenna connector type: BNC
  • Operating temperature range: 0C to +50C
  • Current consumption: RX: <330mA, TX: <3A

Xiegu X6100 Receiver Specifications

• • Frequency coverage: 0,5-30+50-54MHz
  • Receive sensitivity (10dBS/N)
    • (PRE=on, ATT=off, NB=off,NR=off, SSB/CW/AM = 10dB S/N, FM = 12dB SINAD)
    • SSB/CW: 0.20 uV
    • FM 28-30, 50-54 MHz 0.22 uV
    • AM 0,55-1,79 MHz: 10 uV
    • AM 1,8-30 MHz: 2 uV
    • AM 50-54 MHz: 2 uV
  • ADC: 24 bit
  • Spectrum display bandwidth: 96 kHz
  • Spectrum refresh rate: 25 frames/a
  • Spectrum background noise: -140 dBm
  • Audio output: 0,4W (4 Ohm ≥10% THD)
  • 2kHz BDR (Critical frequency suppression): ≥110 dB
  • RMDR: ≥85 dB
  • IMD3: ≥95 dB
  • MDS: -138 dBm

Xiegu X6100 Transmitter Specifications

• • Frequency range
    • 1.8~2.0 MHz
    • 3.5~3.9 MHz
    • 5.3515~5.3665 MHz
    • 7.0~7.2 MHz
    • 10.1~10.15 MHz
    • 14.0~14.35 MHz
    • 18.068~18.168 MHz
    • 21.0~21.45 MHz
    • 24.89~24.99 MHz
    • 28.0~29.7 MHz
    • 50~54 MHz
  • Output Power: 10W (SSB/CW/FM) @13.8VDC
    • 2.5W (AM carrier wave) @13.8VDC
  • Output Power, internal battery: 5W
    • 1.5W (AM carrier wave) @ battery
  • Spurious suppression: 1.8~29.6MHz: ≥50dB
    • 50-54 MHz ≥60 dB
  • Carrier suppression: ≥50dB
  • SSB Frequency Response: 300-2700Hz (-6dB)
  • FM Modulation Swing; +/- 5kHz
  • Mic Impedance: o,2-10k (600 Ohm typical)
  • Antenna tuner tuning impedance range: 1:4.5
  • Antenna tuner initial tuning time: ≥ 15s
  • Antenna tuner memory recall time ≥ 0.2s

Xiegu X6100 General Specifications

• • Dimensions: 180 x 86 x 49 mm
  • Weight: 880 g (radio unit only)

Xiegu X6100 In the Box

• • X6100 radio unit complete with antenna tuner and internal rechargeable battery
  • Microphone with backlit remote control keypad
  • Serial cable for PC connection
  • 12 Volt DC power cord
  • English manual
  • Xiegu Service Card

Xiegu X6100 Suggested Accessories

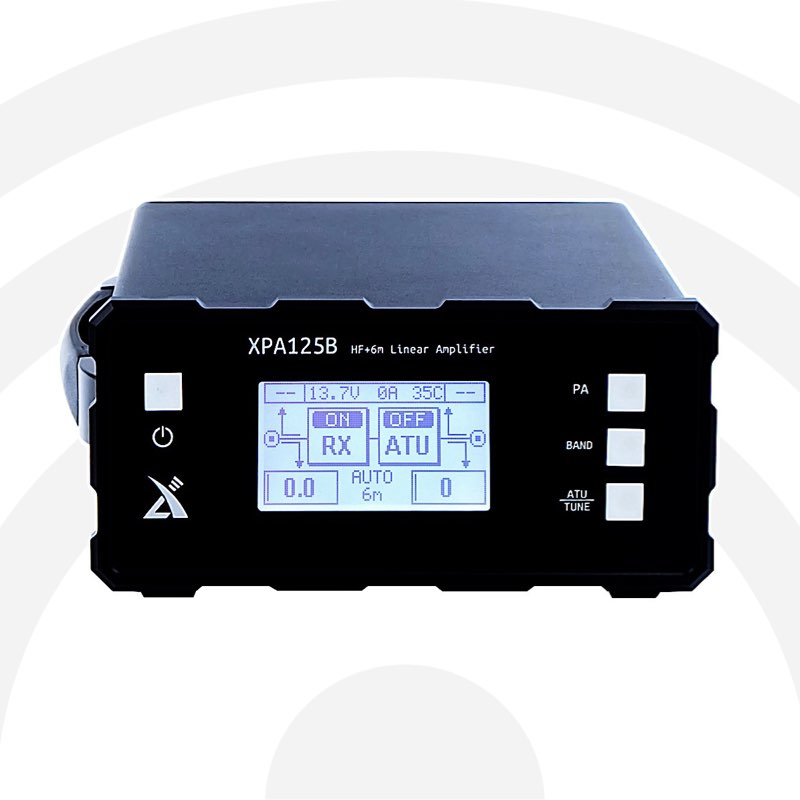

• • XPA125B 100W Solid State Linear Amplifier
  • L4001 amplifier control cable for XPA125B
  • GY-03 External Speaker
  • Authentic FTDI USB Serial Cable for Xiegu transceivers
  • UHF to BNC adapter for connecting antennas with UHF connector
  • 12 VDC Power Cable with 2.5mm plug
  • Frequency Extension Mod, enables full HF range TX

Please note that information on this product page is subject to change without notice.
