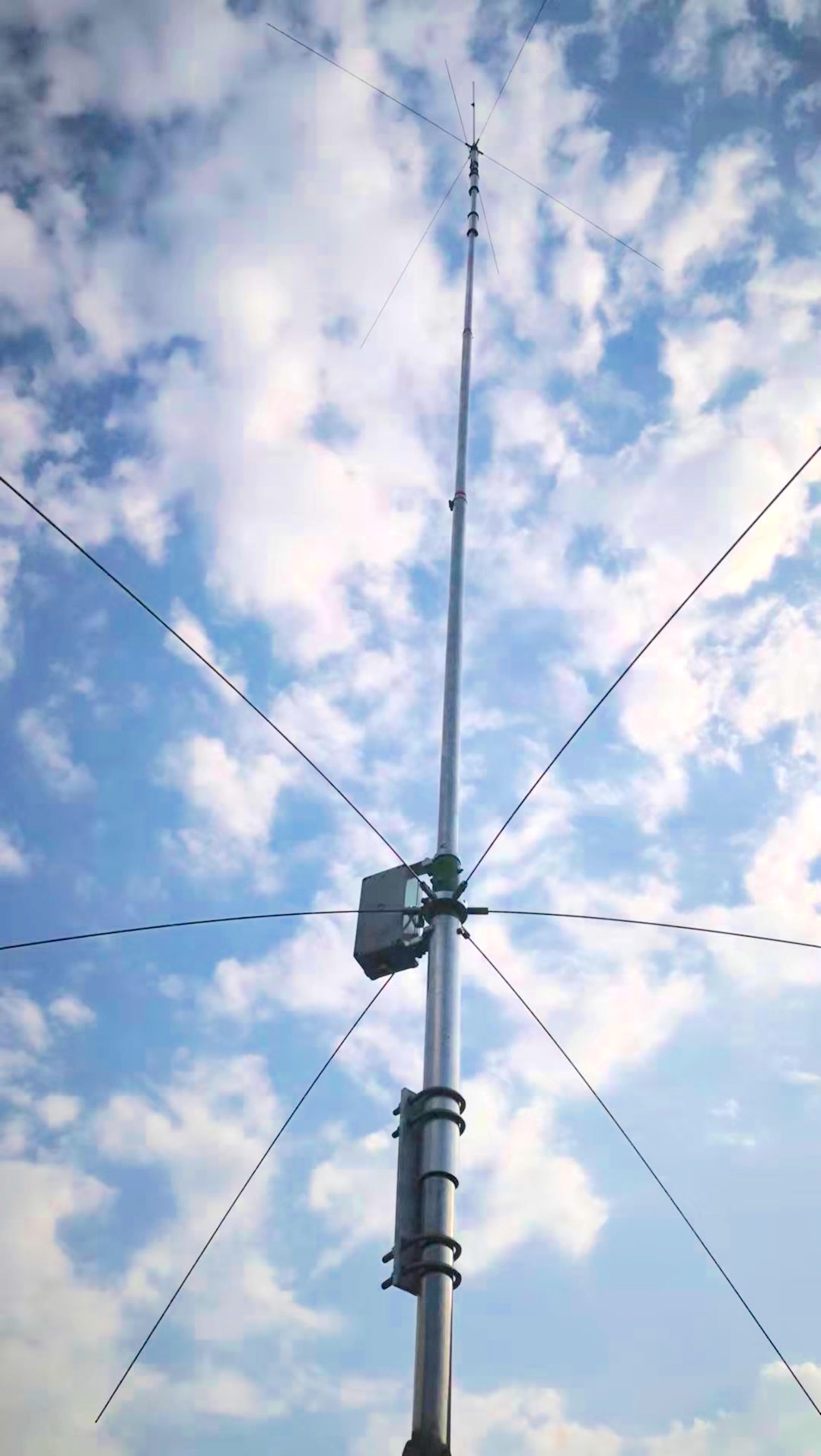

Xiegu VG4 7/14/21/28 MHz Vertical Antenna

Availability:

In stock (can be backordered)


Xiegu VG4 is a 4-band Ground Plane type of antenna using top loading to achieve higher efficiency from a short self supporting vertical radiator.

389.91 $

  • EUR: 359.00 €
  • SEK: 3,932.59 kr.

In stock (can be backordered)

unlimited available through backorder

Xiegu VG4 vertical antenna is made of aluminum alloy with anti-oxidation surface. It is light, solid and easy to install. The VG4 is weather proofed and can resist up to level 12 wind gusts. It is self supporting and in most cases don’t need guy wires.

  • Frequency band: 7, 14, 21 and 28 MHz amateur radio bands (40m/20m/15m/10m)
  • Radiator height: 7.8 meter
  • Radial lengths: around 2.7 meter
  • Maximum power handling: 1000 watt CW
  • Antenna impedance: 50 Ω
  • VSWR:<1.5:1
  • Antenna bandwidth:
    • 40m: 150kHz
    • 20m: 450kHz
    • 15m: 800kHz
    • 10m: 1000kHz
  • Rated wind speed: 35 m/s
  • Antenna interface type: SL16-K
  • Weight: 7 kg
  • Minimum height over ground 3 meter
SKU: XVG4 Categories: , ,
Weight 6.5 kg
Dimensions 119 × 14 × 13 cm
