Chameleon MPAS LITE

(1 customer review)
Availability:

In stock (can be backordered)


The CHA MPAS LITE is the little brother of the CHA MPAS 2.0 – the most popular Modular Portable Antenna System in the WORLD!

489.50 $522.21 $

  • EUR: 449.00 € - 479.00 €
  • SEK: 5 082 kr. - 5 422 kr.

The telescopic Whip Length can be optimized for no-tuner operation on 20-6M when using a 7.6 meter (25 foot) Counterpoise Wire.

Average SWR 1.5:1

20-17m – Whip Length 5.2 meter (17 ft), all sections fully extended)

15-10m – Whip Length 3.66 metet (12 ft), top three sections down/not extended)

The Modular Portable Antenna System (MPAS) is a concept allowing the radio operator to configure and deploy the antenna system in a variety of configurations. Some of the possible deployment configurations:

  • Vertical
  • Horizontal
  • Sloper
  • Inverted “V”
  • Inverted “L”
  • NVIS
  • Balcony (See our blog for article)
  • Vehicle (Stationary)
  • Man-Pack

Chameleon MPAS LITE Specifications

  • Frequency: 6M – 160M
  • Power:
    • HYBRID-MICRO 100 W SSB / 50W CW / 25 W high duty cycle digital modes
    • HYBRID-MINI 500 W SSB / 250 W CW / 40 W high duty cycle digital modes
  • Mounting Configuration: 3/8-24 Thread

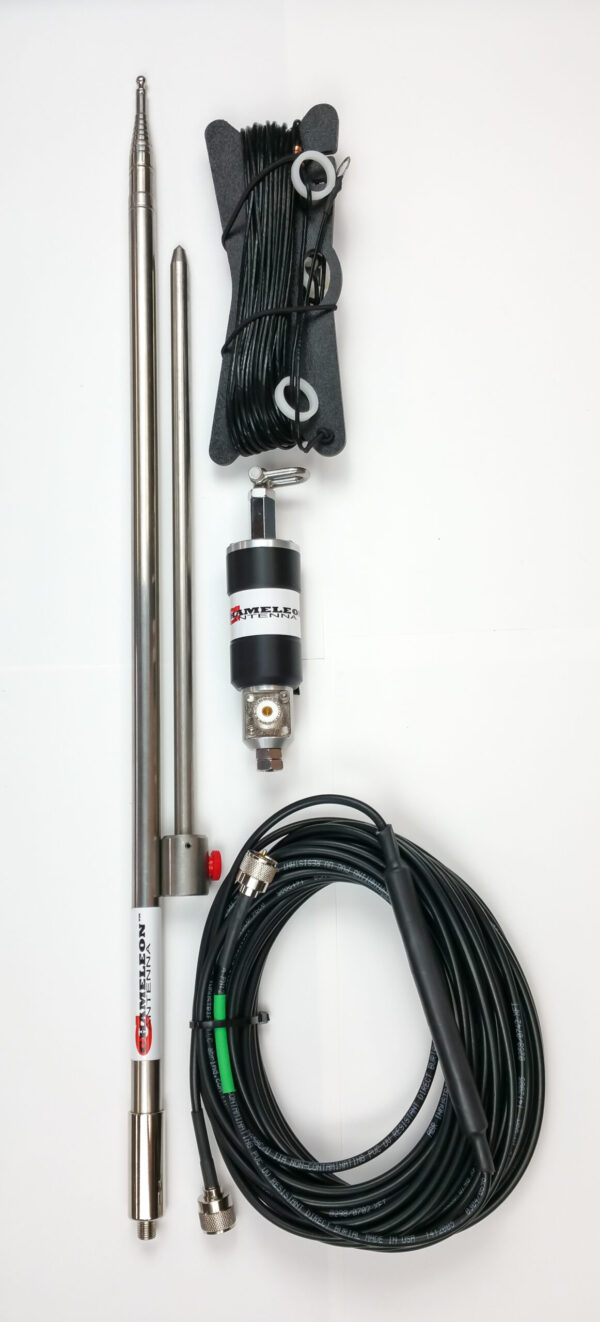

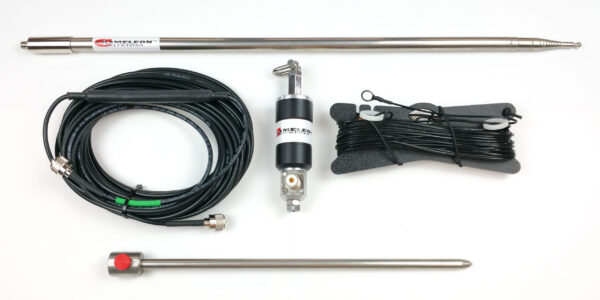

Chameleon MPAS LITE Antenna System Consists of;

  • 1 X CHA HYBRID-MICRO / HYBRID-MINI
  • 1 X 60′ 1.6 mm (16 gauge) Tinned Copper KEVLAR PTFE (Teflon) (-70°C to 150°C) wire
  • 1 X SS17 (5.2 meter (17′) long collapsible stainless steel whip)
  • 1 X CHA SPIKE
  • 1 X CHA 15 meter (50’) Coax with RFI Choke
  • 1X Wire Winder

USER GUIDE



Weight 2.56 kg
Dimensions 82 × 10.7 × 10.7 cm
Model

HYBRID-MICRO, HYBRID-MINI

Based on 1 review

5.0 overall
1
0
0
0
0

Add a review

  1. Christian Reslow (verified owner)

    Very rugged, versatile and easy to set up but quite expensive. As a beginner I haven’t got anything to compare it with but after using the Chameleon MPAS Lite for a month I still think it’s great.

    Christian Reslow
