Xiegu GSOC Controller, Panadapter & Terminal

Availability:

Available on backorder


Xiegu GSOC is an advanced controller with panadapter for the G90 and X5105 transceivers. It has a large high resolution touch screen and will extend the features and functionality of your G90 and X5105 transceiver.

UPDATE: First batch of GSOC will be available for delivery in December. Expect limited supply, pre-order today!

666 $

  • EUR: 549 €
  • SEK: 5,768 kr.

Available on backorder

unlimited available through backorder

The Xiegu GSOC universal controller and Data terminal extends the functionality of your G90 and X5105. Its main CPU is an ARM Cortex A7 and it has 1 GB of RAM and 4 GB of eMMC storage. The secondary CPU is a Cortex-M3 which is an I/O controller that handles the GSOC buttons, encoders, etc.

Two built in sound cards, one is 24 bits at 192 ksps and the other is 8 to 32 bits at 8 to 48 ksps. Both are stereo compatible and they enable easy processing of digital modes. encoding in both the I/Q domain and the base audio domain.

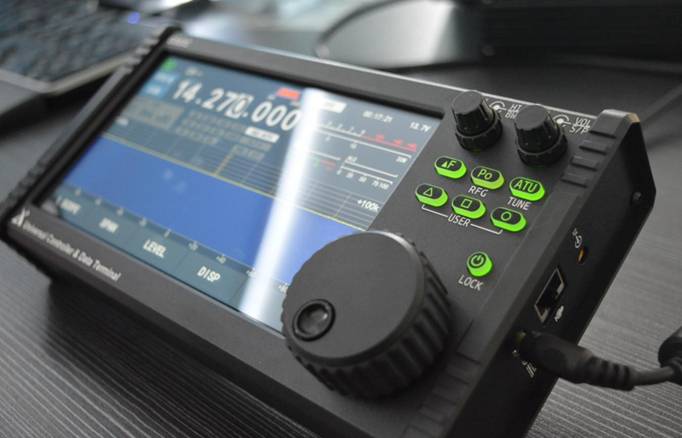

A 64-PPR Optical encoder for the main knob has been dustin made by Xiegu using CNC equipment and is made of brass and stainless steel. The heavy duty VFO knob is made of an aluminum alloy with a rotatable finger tip cap. The GSOC ha two coaxial encoders with push buttons that both can be Multi-Function Knobs. In addition to the backlit RIT, Power and ATU quick access buttons the GSOC has three user customisable pushbuttons.

The GSOC uses a Xiegu private communication protocol and is not a CI-V-based controller / panadapter. However, it can be configured as a CI-V controller using a USB-to Serial cable

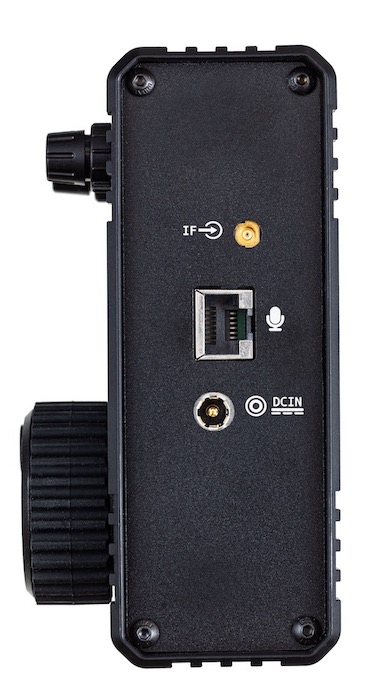

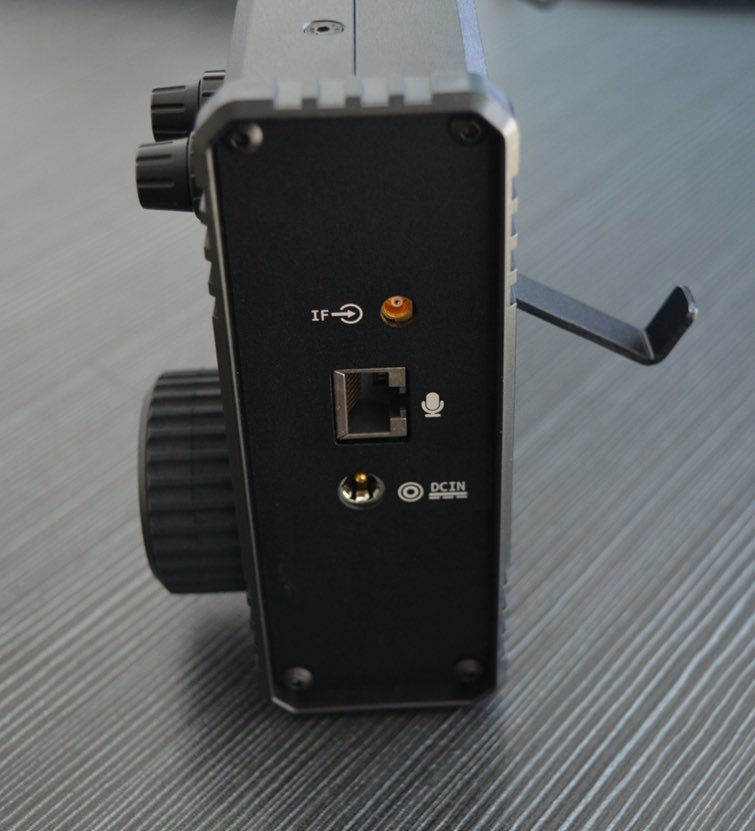

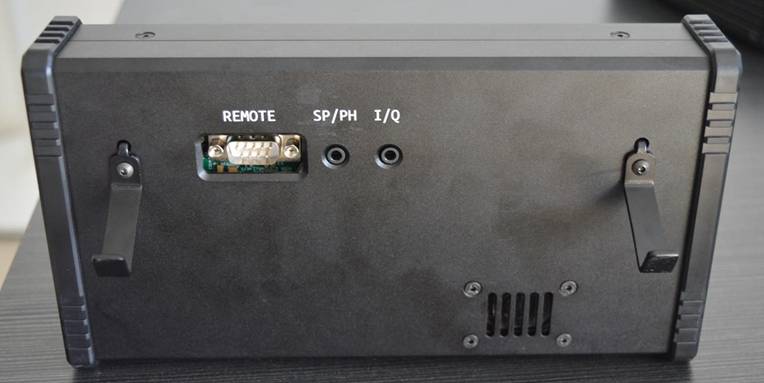

It has an I/Q input port and an IF input port making it versatile.

Preliminary Features

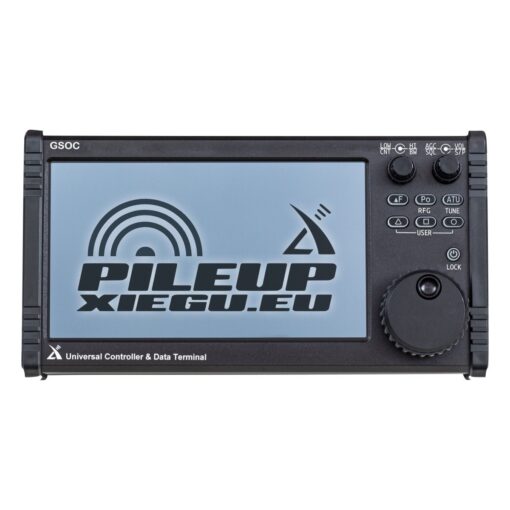

  • High resolution 1024*600 7-inch color touch LCD screen

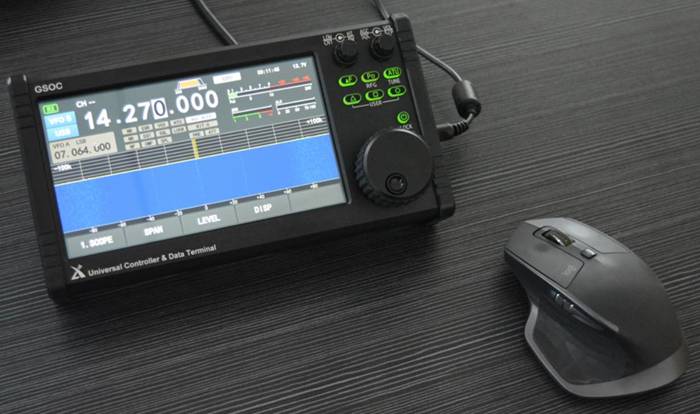

  • Spectrum and waterfall display with up to 192 kHz span
  • Two built in sound cards
    1. 24-bit @192 ksps
    2. 3-32 bits @8-48 ksps
  • DVR, Digital Voice Recorder
  • Send/Receive CW and data modes (require USB keyboard)
  • Adds RF Gain control to G90
  • Power output control
  • Adds FM Mode to G90
  • Controls ATU
  • Adds RX and TX EQ
  • User definable controls
  • I/Q and IF inputs

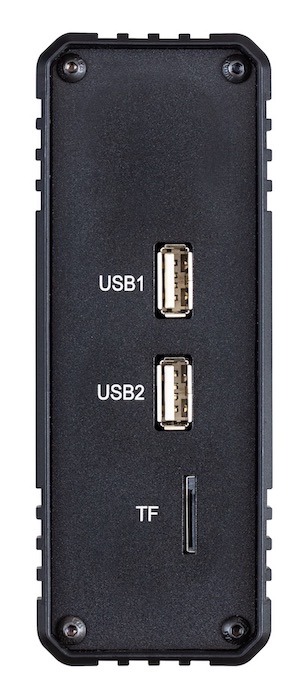

  • Connect USB disk/SD card
  • Wifi and Bluetooth support
SKU: GSOC Categories: , ,
Weight 2.3 kg
