Chameleon HYBRID-MICRO

The Chameleon HYBRID MICRO antenna will operate at all frequencies in the 1.8-54 MHz band without any adjustment with most modern external antenna tuners. No masts or guying are required.

The antenna will work successfully supported by trees, masts, the tops of vehicles or any convenient object or structure. The antenna works most effectively when elevated at a reasonable height.

The HYBRID MICRO Base feature an integral broadband impedance matching network (transformer 5:1) allowing broadband antenna tuning. An external antenna tuner is required to provide a low VSWR across the HF spectrum. The unit is water resistant.

Can be also used with the SS17 telescopic Whip, Chameleon MIL 2.0, Chameleon MIL EXT 2.0, Chameleon CAP-HAT. Optionally mounts on any 3/8 threaded mount or used with any 3/8 threaded accessory. This makes the HYBRID-MICRO the main component in many possible antenna configurations. See the user guide for many different deployment ideas.

Specifications:

Frequency: 6M – 160M

Power: 100 SSB or 50W CW.

Mounting Configuration: 3/8-24 Thread

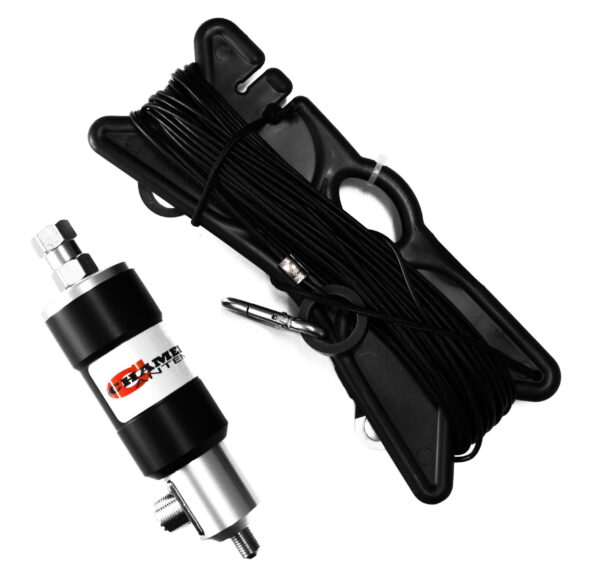

The antenna system consists of:

1 X HYBRID-MICRO Matching Unit Base

1 X 18.3 meter (60′) Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire

Stainless Steel Hardware

User Guide Download
